Technical Load Charts

Essential reference tables for lifting capacities. Always verify the manufacturer's tags before operation.

Webbing Sling Load Chart

DEFAULT

SAVED CHARTS

Standard Load Chart

Polyester Webbing Slings — BS EN 1492-1:2000+A1:2008

● Default

FLAT & ROUND POLYESTER WEBBING SLINGS LOAD CONFIGURATION
FACTOR OF SAFETY: 7:1		LOAD IN %	100%	80%	200%	140%	100%	70%	50%	140%	100%	112%	80%	140%	100%	210%	150%
FACTOR OF SAFETY: 7:1		MODE FACTOR	1	0.8	2	1.4	1	0.7	0.5	1.4	1	1.12	0.8	1.4	1	2.1	1.5
BS EN 1492-1:2000+A1:2008 BS EN 1492-2:2000+A1:2008		TYPES

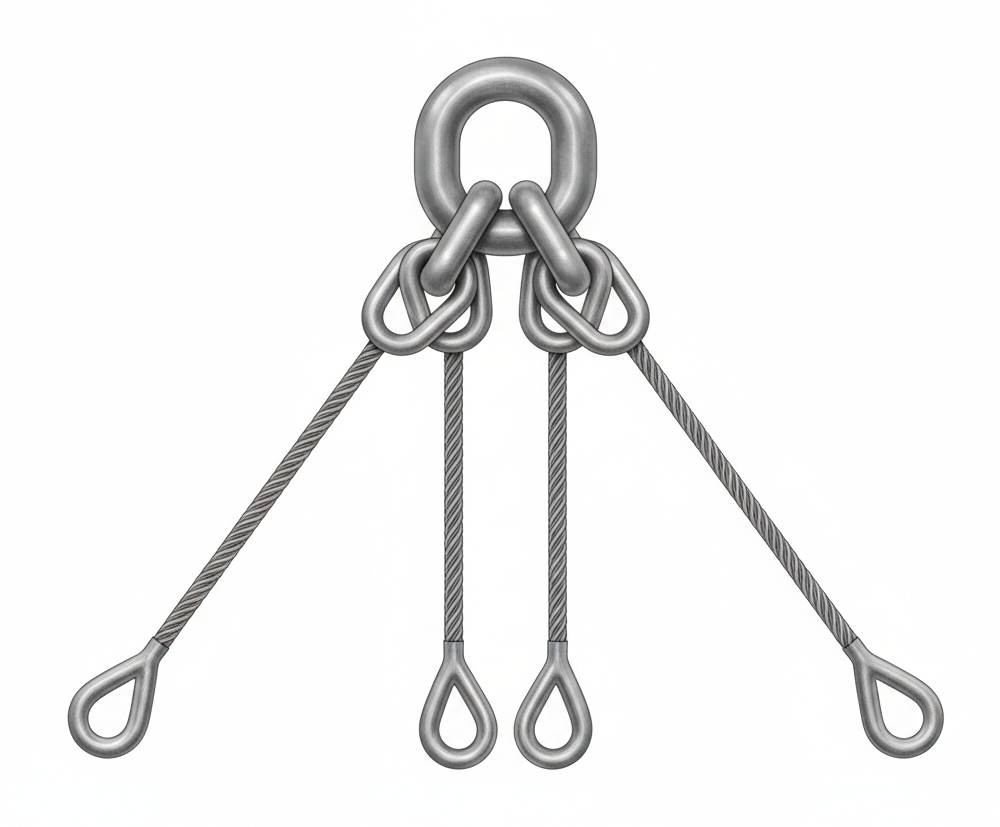

TEMPERATURE RANGE: -40°C TO 100°C			WLL FOR SINGLE LEG							WLL FOR PAIR OF SLINGS				WLL FOR 2 LEGS		WLL FOR 3 & 4 LEGS

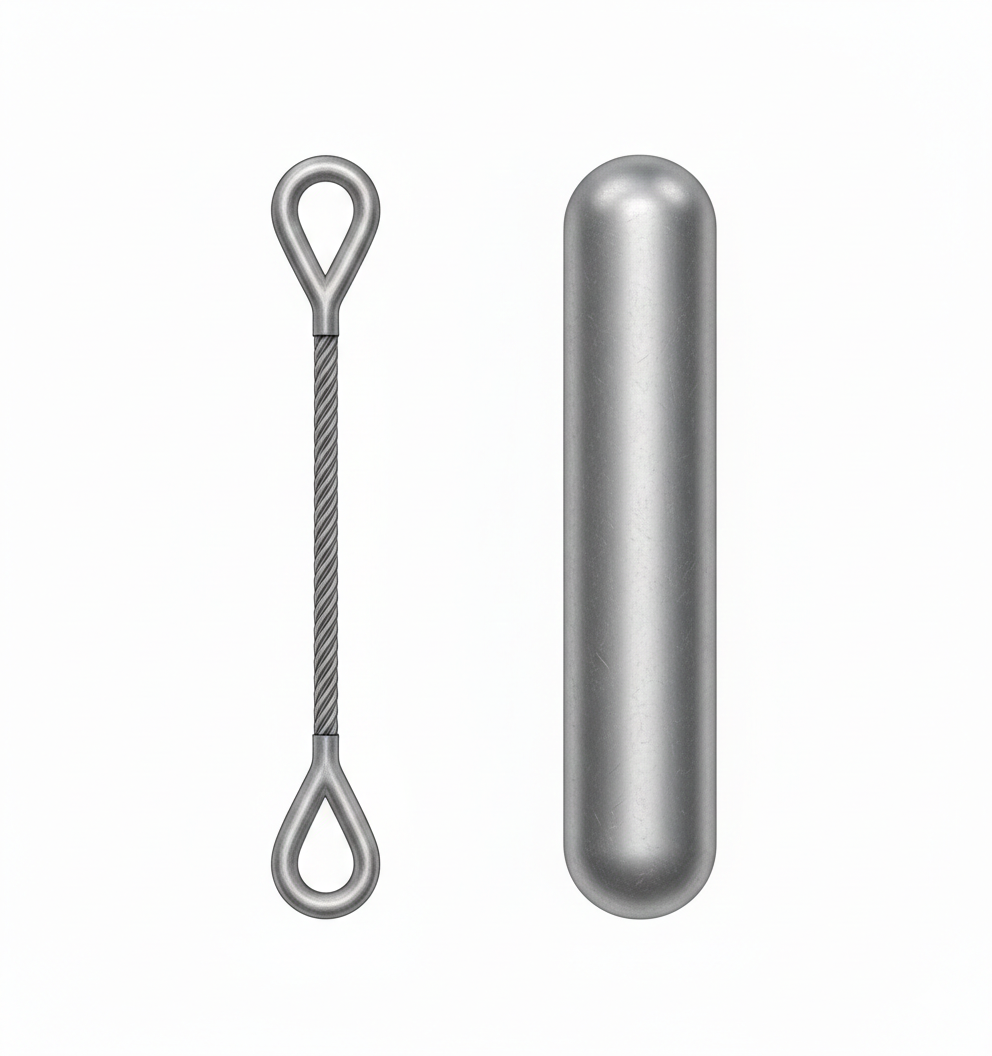

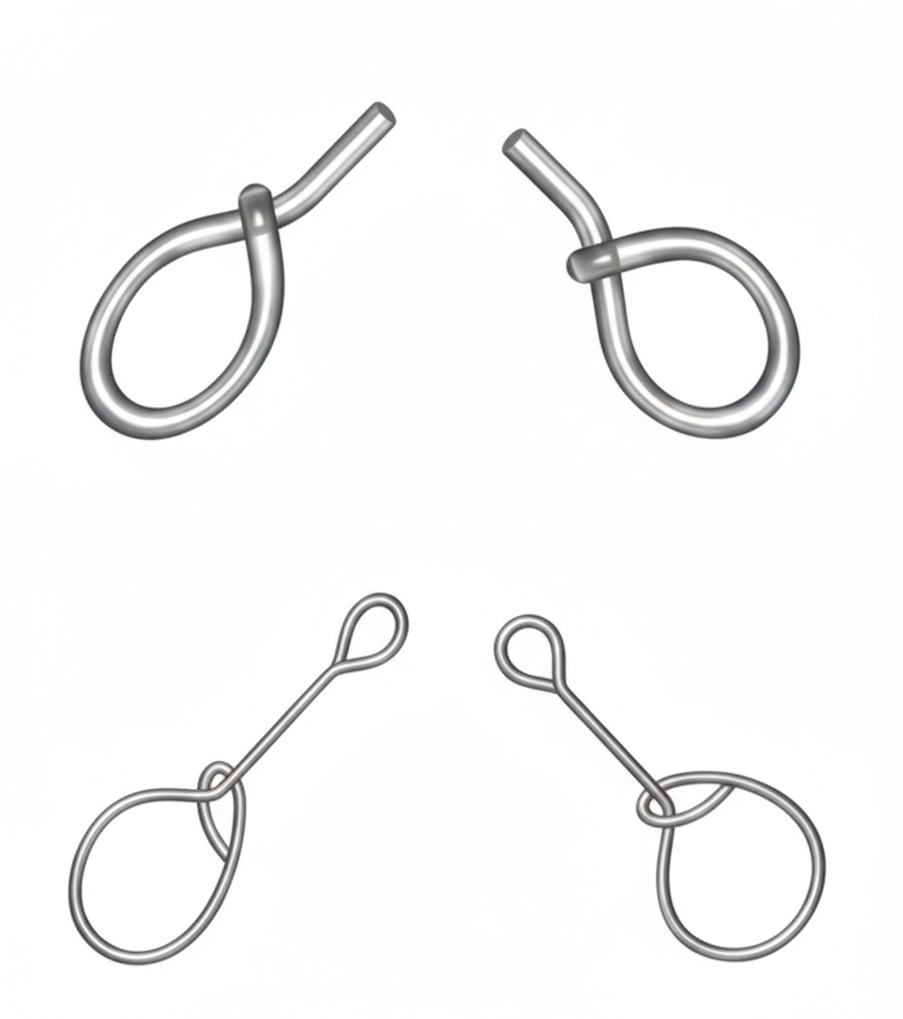

COLOR	WIDTH mm	WIDTH Inch	VERTICAL / STRAIGHT	CHOKED	BASKET	0-45 deg	45-60 deg	0-45 deg	45-60 deg	0-45 deg	45-60 deg	0-45 deg	45-60 deg	0-45 deg	45-60 deg	0-45 deg	45-60 deg
VIOLET	25	1	1000	800	2000	1400	1000	700	500	1400	1000	1120	800	1400	1000	2100	1500
GREEN	50	2	2000	1600	4000	2800	2000	1400	1000	2800	2000	2240	1600	2800	2000	4200	3000
YELLOW	75	3	3000	2400	6000	4200	3000	2100	1500	4200	3000	3360	2400	4200	3000	6300	4500
GREY	100	4	4000	3200	8000	5600	4000	2800	2000	5600	4000	4480	3200	5600	4000	8400	6000
RED	125	5	5000	4000	10000	7000	5000	3500	2500	7000	5000	5600	4000	7000	5000	10500	7500
BROWN	150	6	6000	4800	12000	8400	6000	4200	3000	8400	6000	6720	4800	8400	6000	12600	9000
BLUE	200	8	8000	6400	16000	11200	8000	5600	4000	11200	8000	8960	6400	11200	8000	16800	12000
ORANGE	250	10	10000	8000	20000	14000	10000	7000	5000	14000	10000	11200	8000	14000	10000	21000	15000
ORANGE	300	12	15000	12000	30000	21000	15000	10500	7500	21000	15000	16800	12000	21000	15000	31500	22500
ORANGE	350	14	20000	16000	40000	28000	20000	14000	10000	28000	20000	22400	16000	28000	20000	42000	30000

All WLL values in kg • Temperature range: -40°C to 100°C • Factor of Safety: 7:1

Additional Notes for Webbing Slings:

Working Load Limit (WLL) is based on a safety factor of 7:1.
Always protect webbing from sharp edges using protective sleeves or pads.

Crucial Safety Warning: Never exceed the Working Load Limit (WLL) marked on the identification tag. The values shown are for general guidance only.

FLAT & ROUND POLYESTER WEBBING SLINGS LOAD CONFIGURATION
VIOLET	25	1	1000	800	2000	1400	1000	700	500	1400	1000	1120	800	1400	1000	2100	1500
GREEN	50	2	2000	1600	4000	2800	2000	1400	1000	2800	2000	2240	1600	2800	2000	4200	3000
YELLOW	75	3	3000	2400	6000	4200	3000	2100	1500	4200	3000	3360	2400	4200	3000	6300	4500
GREY	100	4	4000	3200	8000	5600	4000	2800	2000	5600	4000	4480	3200	5600	4000	8400	6000
RED	125	5	5000	4000	10000	7000	5000	3500	2500	7000	5000	5600	4000	7000	5000	10500	7500
BROWN	150	6	6000	4800	12000	8400	6000	4200	3000	8400	6000	6720	4800	8400	6000	12600	9000
BLUE	200	8	8000	6400	16000	11200	8000	5600	4000	11200	8000	8960	6400	11200	8000	16800	12000
ORANGE	250	10	10000	8000	20000	14000	10000	7000	5000	14000	10000	11200	8000	14000	10000	21000	15000
ORANGE	300	12	15000	12000	30000	21000	15000	10500	7500	21000	15000	16800	12000	21000	15000	31500	22500
ORANGE	350	14	20000	16000	40000	28000	20000	14000	10000	28000	20000	22400	16000	28000	20000	42000	30000

FLAT & ROUND POLYESTER WEBBING SLINGS LOAD CONFIGURATION

FACTOR OF SAFETY:

7:1

LOAD IN %

100%

80%

200%

140%

100%

70%

50%

140%

100%

112%

80%

140%

100%

210%

150%

MODE
FACTOR

0.8

1.4

0.7

0.5

1.4

1.12

0.8

1.4

2.1

1.5

BS EN 1492-1:2000+A1:2008 BS EN 1492-2:2000+A1:2008

TYPES

TEMPERATURE RANGE: -40°C TO 100°C

WLL FOR SINGLE LEG

WLL FOR PAIR OF SLINGS

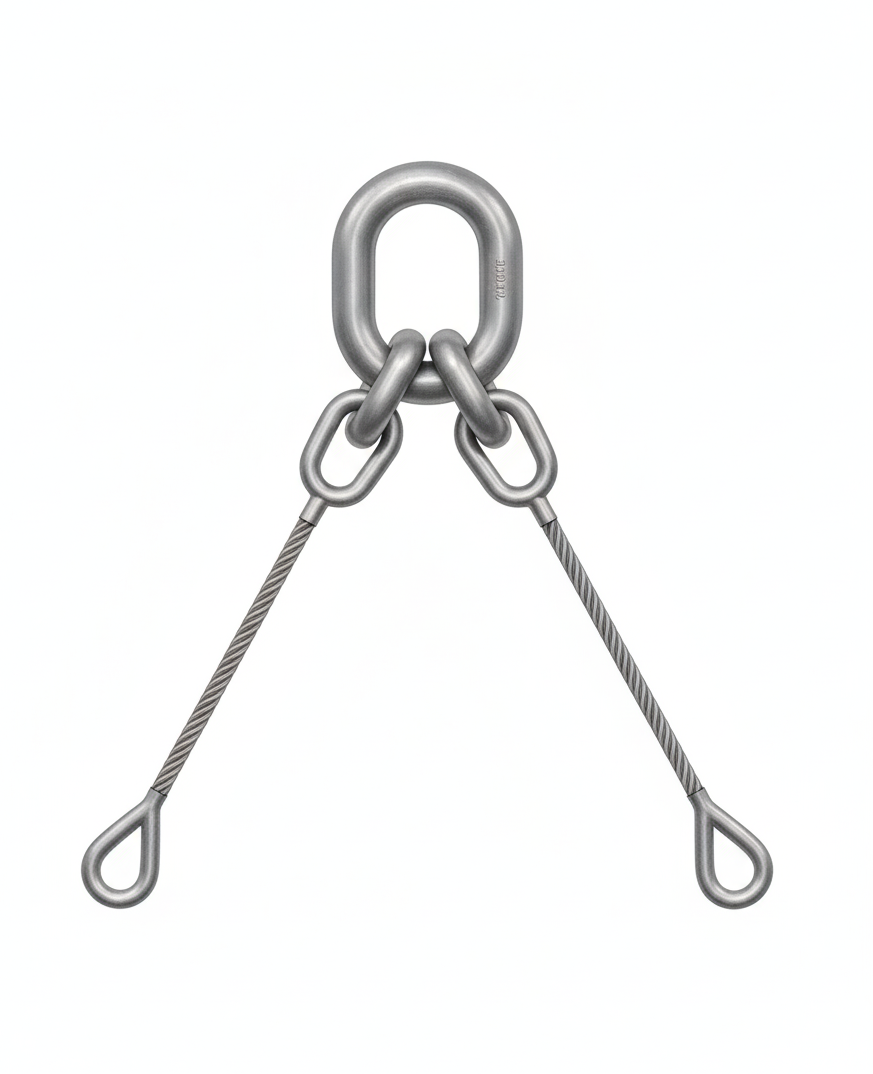

WLL FOR 2 LEGS

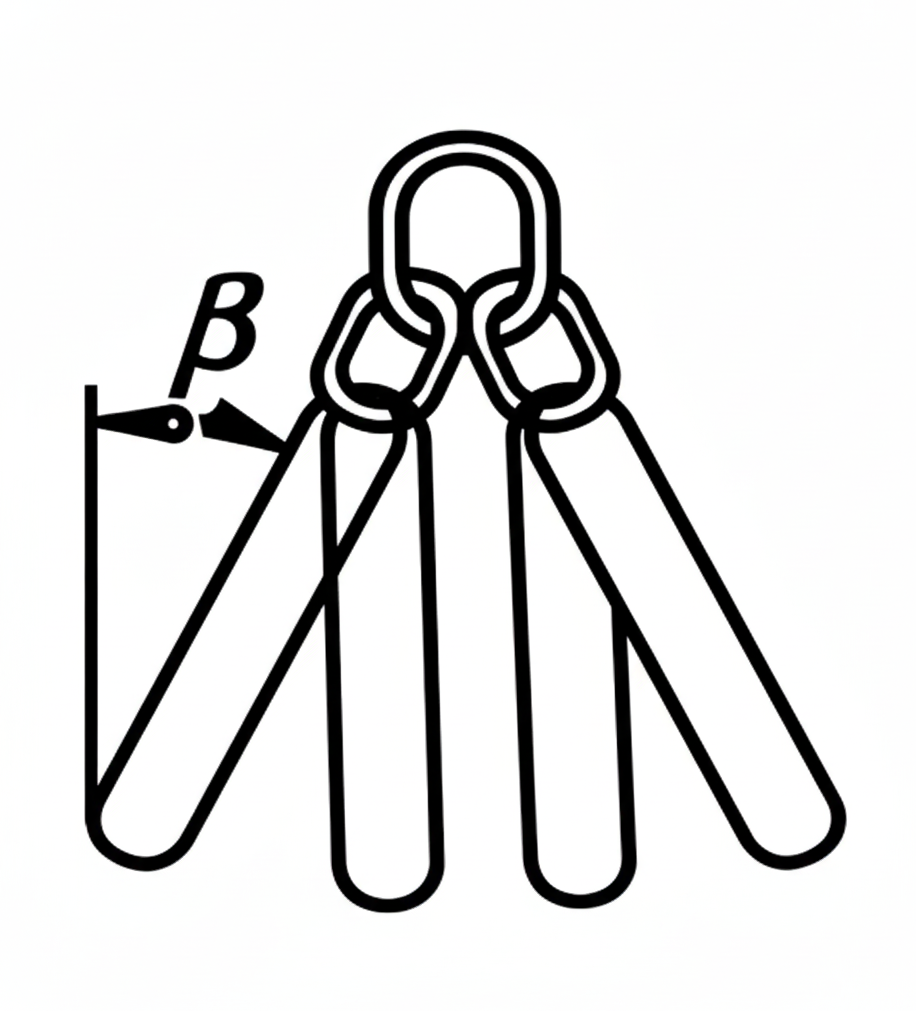

WLL FOR 3 & 4 LEGS

COLOR

WIDTH mm

WIDTH Inch

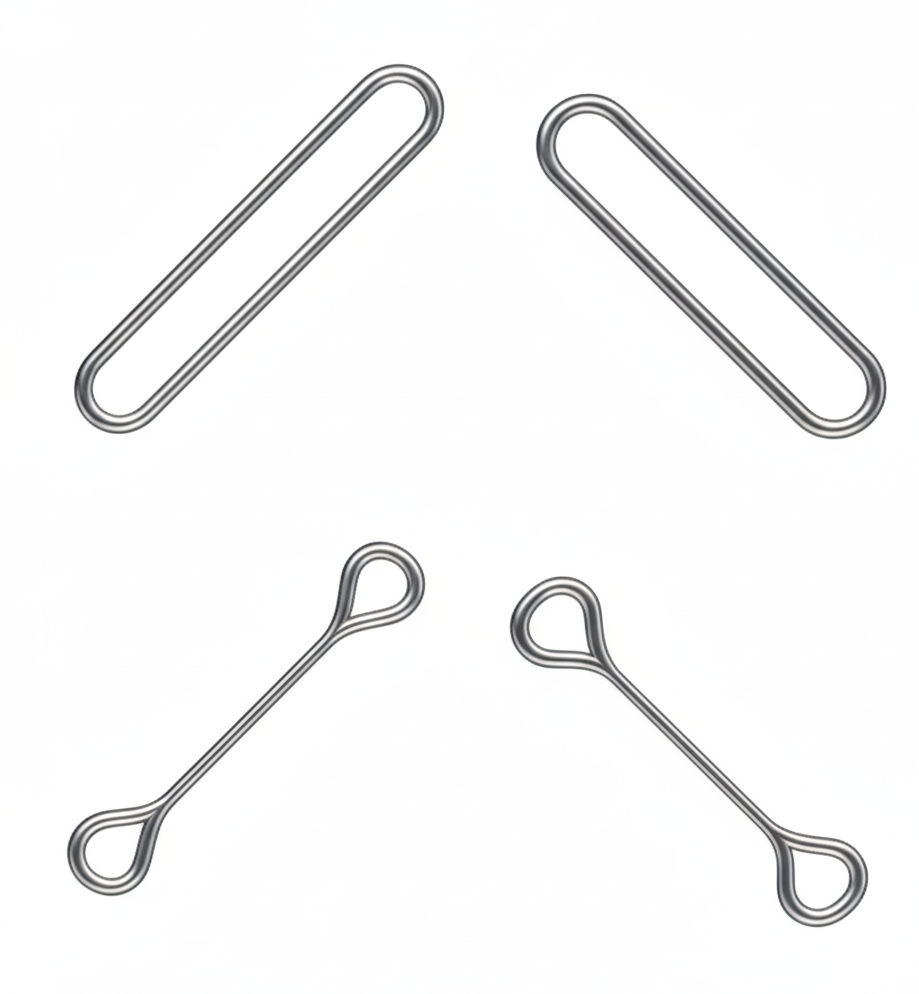

VERTICAL / STRAIGHT

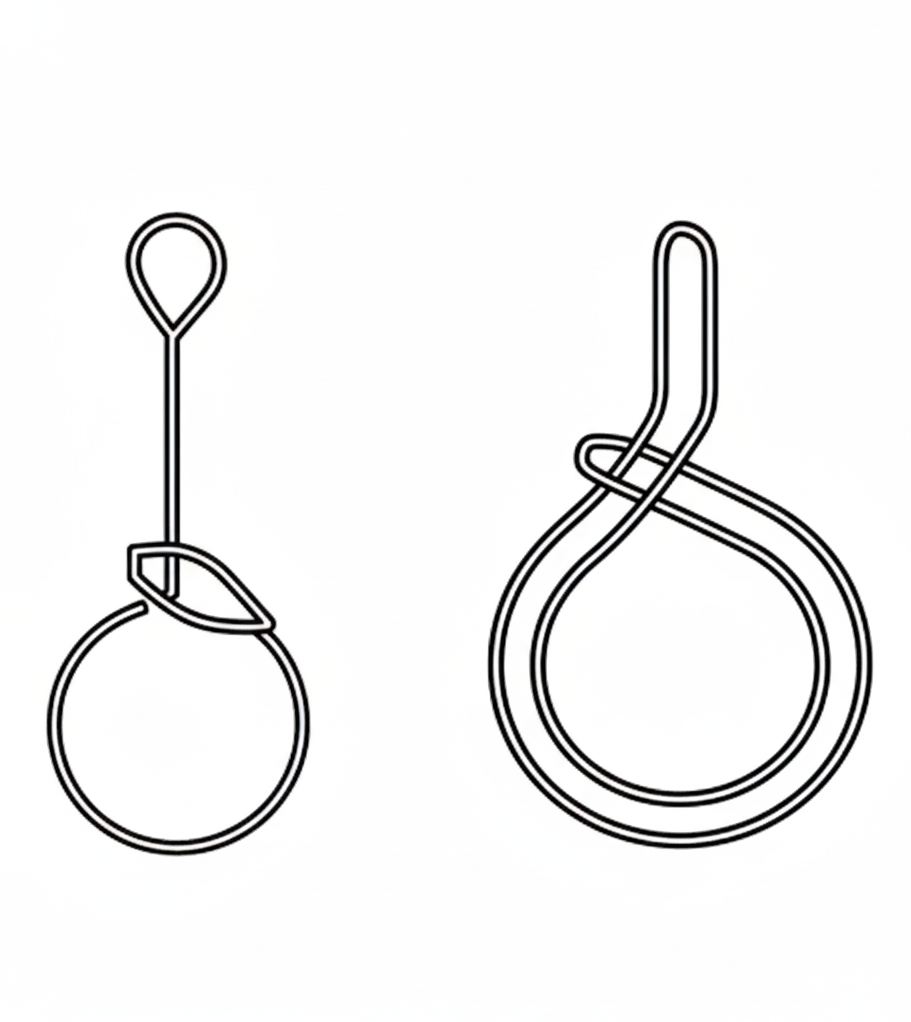

CHOKED

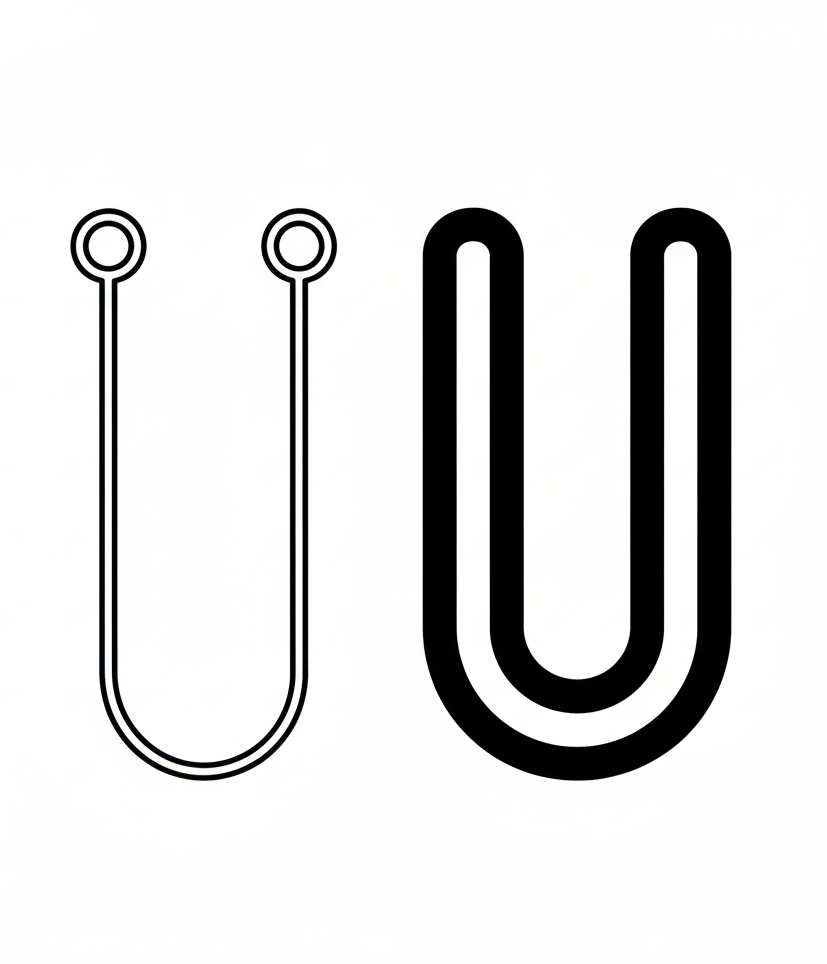

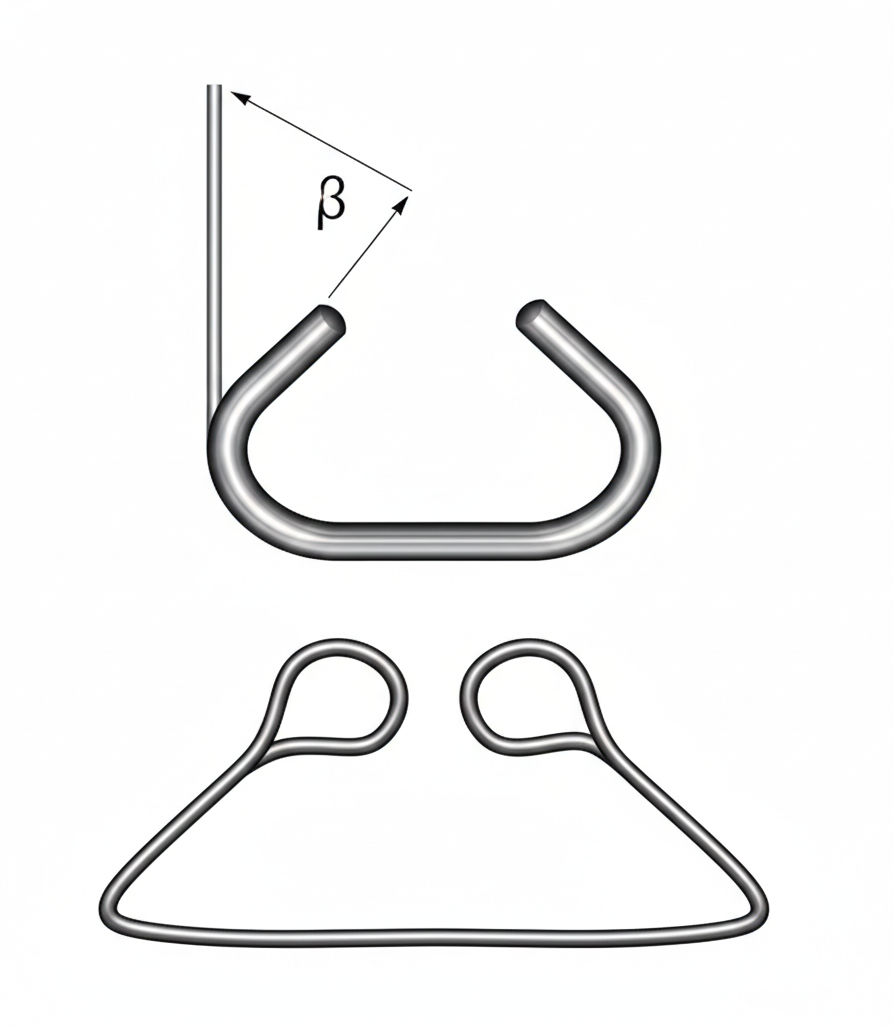

BASKET
